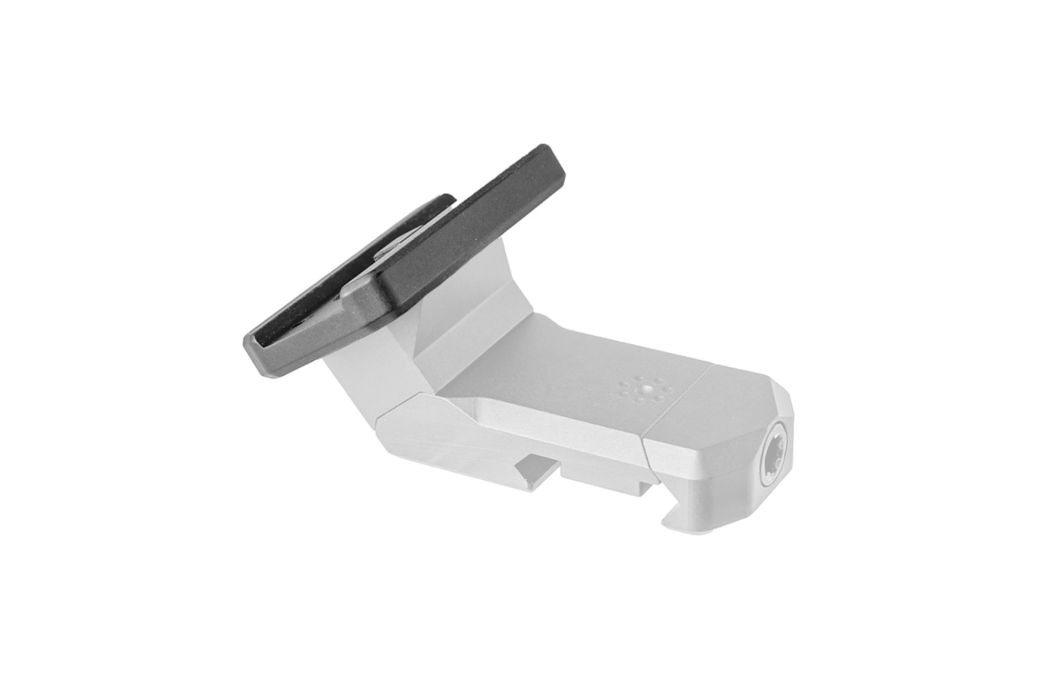

ARISAKA | Offset Optic Plate Only - PLATE 15
A complete offset optic mount requires both a base and one optic plate.
Standard height (for 1.5" to 1.8" scope mounts):
Plate 1: Docter, Eotech MRDS, Insight, Meopta, Vortex Venom/Viper, Burris Fastfire III, Crimson Trace CTS 1250/1300 and CT RAD/RAD Pro
Plate 2: Trijicon RMR, SRO, Holosun 407C, 507C, 508T, Swampfox Kingslayer, Liberty, Justice
Plate 3: C-More, Vortex Razor, SIG Romeo 3
Plate 4: Leupold Delta Point Pro, JPoint, Shield RMS, RMSc, Swampfox Sentinel, SIG Romeo Zero, Crimson Trace CT RAD Micro/Micro Pro, Eotech EFLX
Plate 5: Aimpoint Micro T1/T2/H1/H2, SIG Romeo 4, 5 (not 5X), Holosun HS403 (not A), HS503, HS515, HS530, Vortex Crossfire
Plate 6: Aimpoint Acro P1/P2, Steiner MPS
Plate 13: Holosun 509T, HE509-RD
Plate 15: SIG Romeo 1 and Romeo 1 Pro
Plate 18: Holosun 407K, 507K (EPS should use plate 2 with adapter included with optic)
Plate 21: Trijicon RMRcc
Tall height (1.9" to 2.2" scope mounts):
Plate 7: Docter, Eotech MRDS, Insight, Meopta, Vortex Venom/Viper, Burris Fastfire III, Crimson Trace CTS 1250/1300 and CT RAD/RAD Pro
Plate 8: Trijicon RMR, SRO, Holosun 407C, 507C, 508T, Swampfox Kingslayer, Liberty, Justice
Plate 10: Leupold Delta Point Pro, JPoint, Shield RMS, RMSc, Swampfox Sentinel, SIG Romeo Zero, Crimson Trace CT RAD Micro/Micro Pro, Eotech EFLX
Plate 11: Aimpoint Micro T1/T2/H1/H2, SIG Romeo 4, 5 (not 5X), Holosun HS403 (not A), HS503, HS515, HS530, Vortex Crossfire
Plate 12: Aimpoint Acro P1/P2, Steiner MPS
Plate 14: Holosun 509T, HE509-RD
Plate 16: SIG Romeo 1 and Romeo 1 Pro
Plate 17: 1913 Picatinny Rail Adapter (40 degrees only, non adjustable)
Plate 19: Holosun 407K, 507K (EPS should use plate 8 with adapter included with optic)
Plate 20: Trijicon MRO
Plate 22: Trijicon RMRcc
Please refer to your optic's manufacturer for correct torque values, but do not exceed 20 inch lbs on the screws that attach the optic to the plate. For instance, Aimpoint specifies just under 12 inch lbs for the Micro T1/T2.
Each plate is CNC machined from 6061-T651 aluminum and MIL-A-8625 Type III hard coat anodized. Please refer to the instructions for torque values and mount configuration. Plates include new screws (where needed) which we recommend using over the OEM screws, as long as the lengths are appropriate (pay attention while assembling). The Leupold DPP plate 4 and 10 include extra long screws to attach the optic to the plate that require a 2.5mm Allen key.
