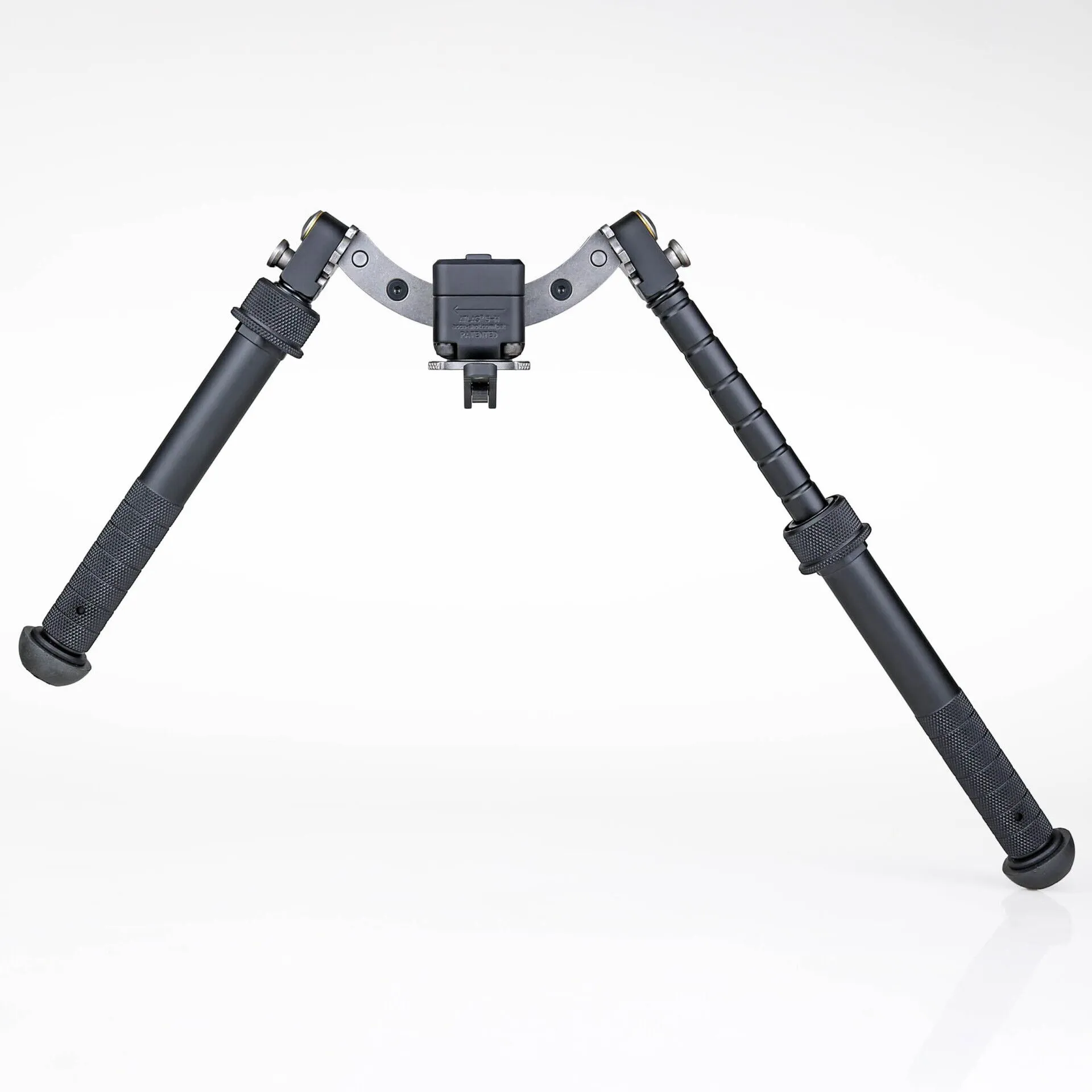

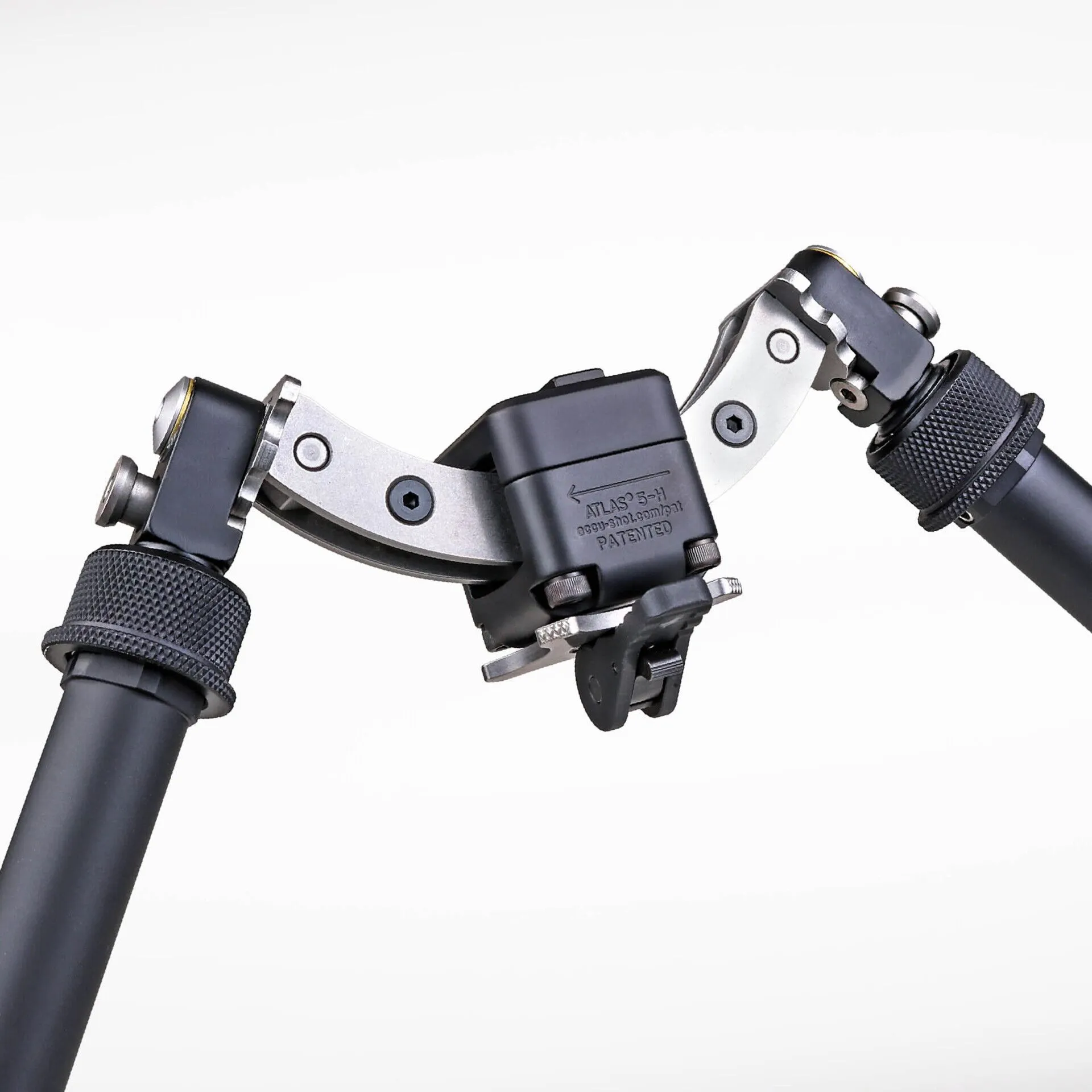

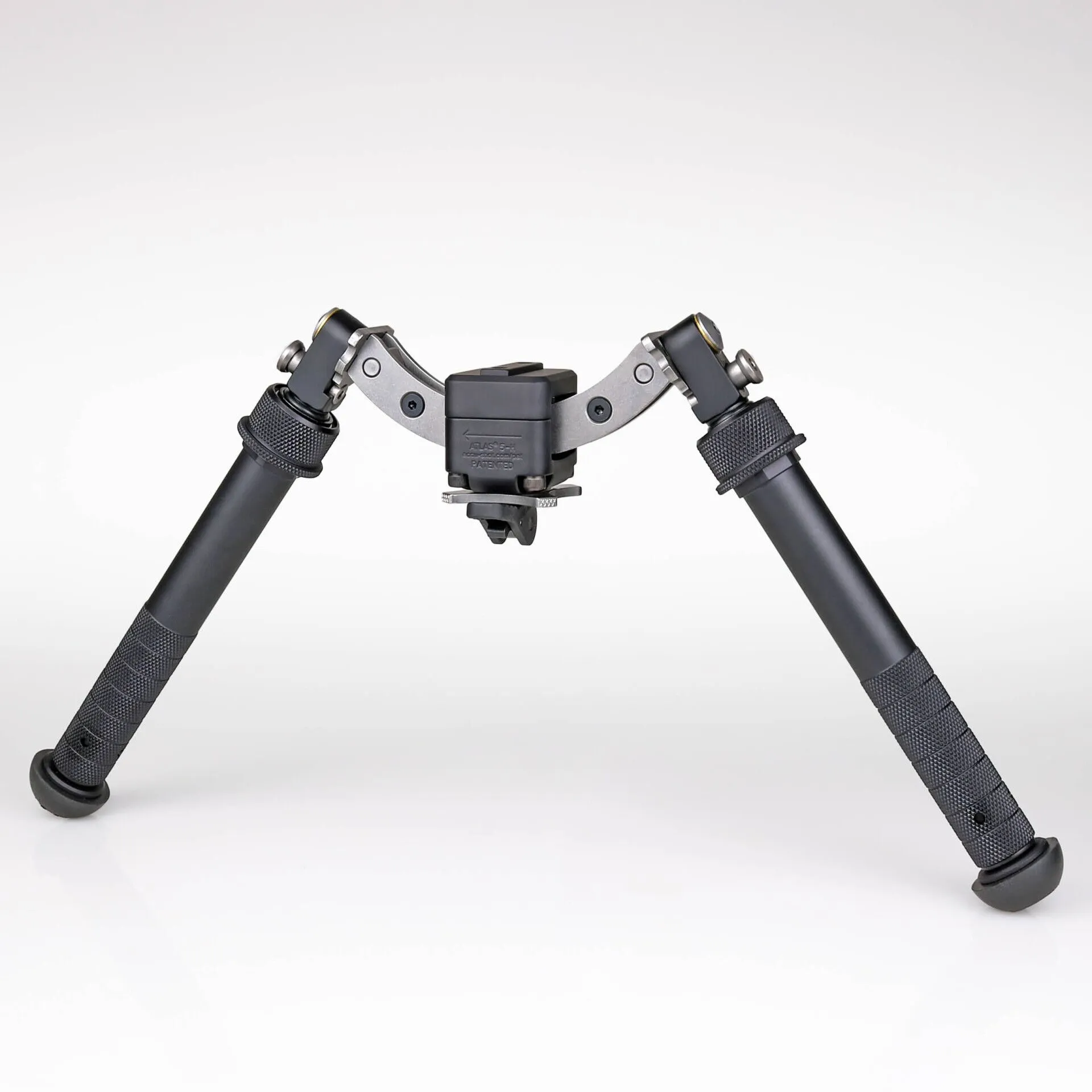

B&T | BT35-NC 5-H Atlas Bipod
About the 5-H Series: Our answer to requests for a “bigger and heavier” support with same novel Atlas® Bipod features. With five independent leg positions – including the patented 45° leg position – it also has the ability to Pan and Cant with adjustable tension and capability to lock out the Pan feature OR both the Pan and Cant by adjusting the depth of the supplied lockout fastener. Designed to support larger caliber rifles while finding value with all disciplines to include precision air rifles. Made in the USA.
The BT35-NC model Atlas Bipod is part of our 5-H Series. The “NC” stands for “No Clamp,” meaning it requires a *compatible 17S size mount in order to attach to a firearm. The interface to install a clamp has a two hole pattern of 1.100” with 10/32 threads. It requires the ADM-5-H Lever (see BT35-LW17) or will mount directly to our BT19 AI Spigot or BT70 M-LOK® Adapter.
*If planning for installation of another 17S size mount, the BT35-NC requires Area 419’s ARCALOCK Spigot Extension for clearance of the cradle and operation of the clamp’s knob/lever. Optional mounts that we currently offer and require the Extension can be found here: Atlas Bipod Clamps & Adapters
The BT35-NC is comprised of 6061-T6 aluminum that is Mil-Spec Type III hard coat anodized with heat treated, stainless steel components. Includes two 10-32 x 3/8″ flathead socket screws. Available in black only.
▪ Height Range: 4.8 – 10″ (6.6” at 90°)
▪ Pan: 30 degrees
▪ Cant: 30 degrees
▪ Pan and Cant can be locked out at top dead center
▪ Pan and Cant Tension Wheel has Detent adjustability and Cam-Lock
▪ Position Button 0.5″ diameter

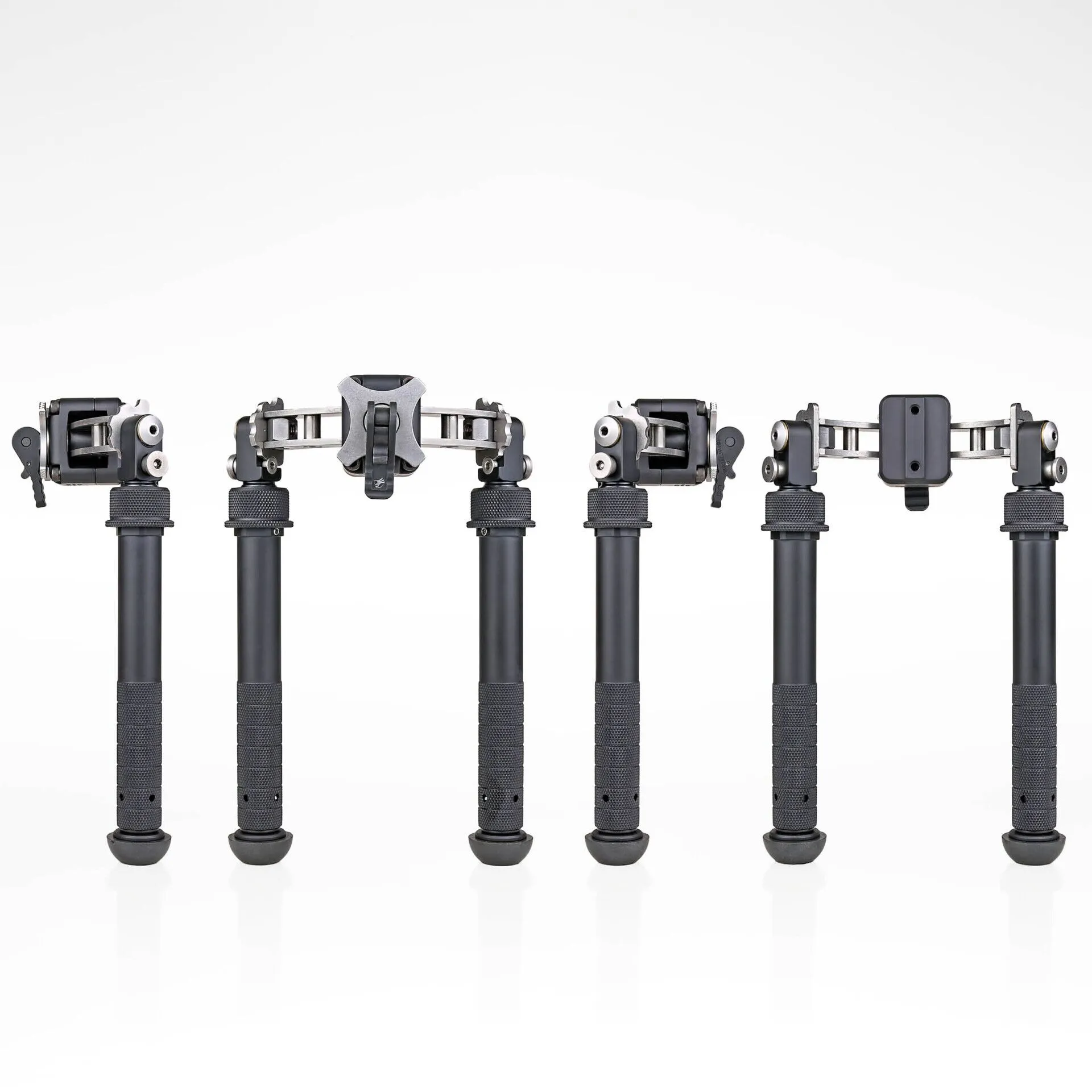

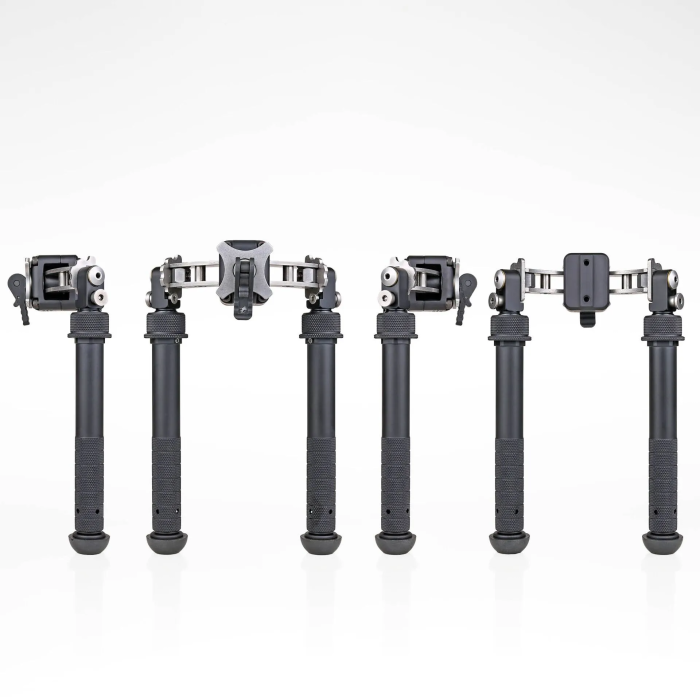

▪ 5 leg positions: 0, 45, 90, 135 & 180 degrees
▪ Non-Rotating Legs: outer leg does not rotate around inner leg
▪ Weight: 25.74 ounces approx.
▪ Footprint: 14.5–19.5″
▪ Weight 25.74 oz
