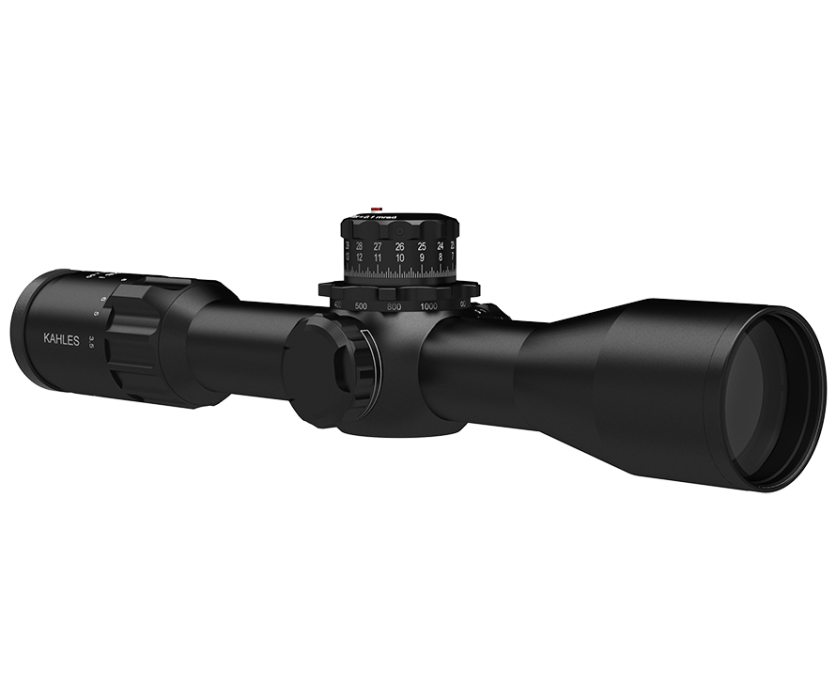

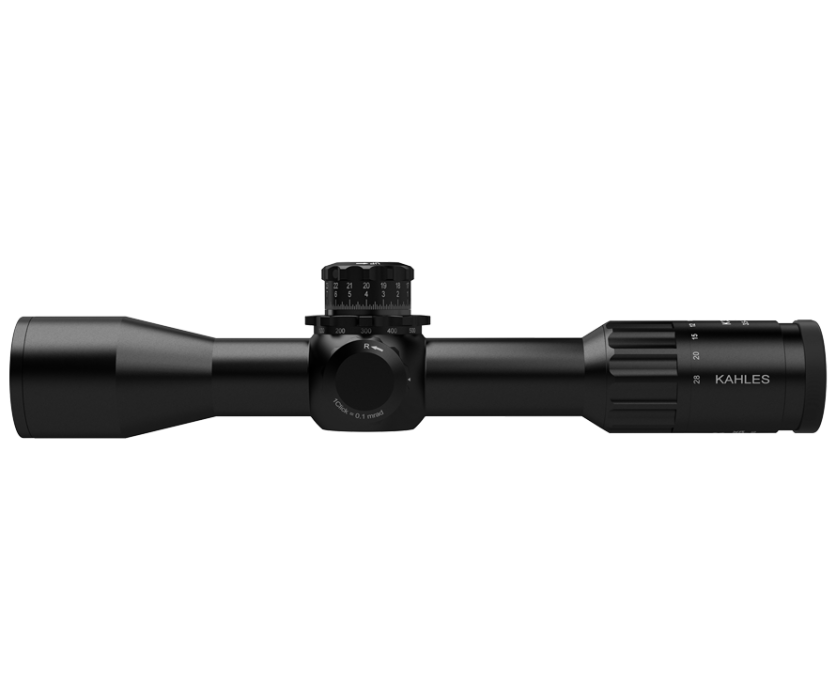

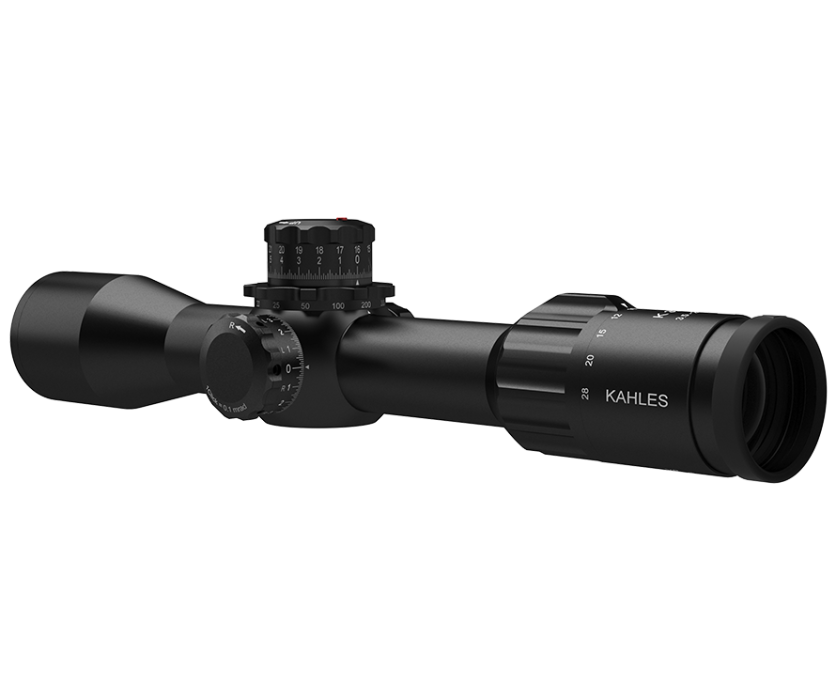

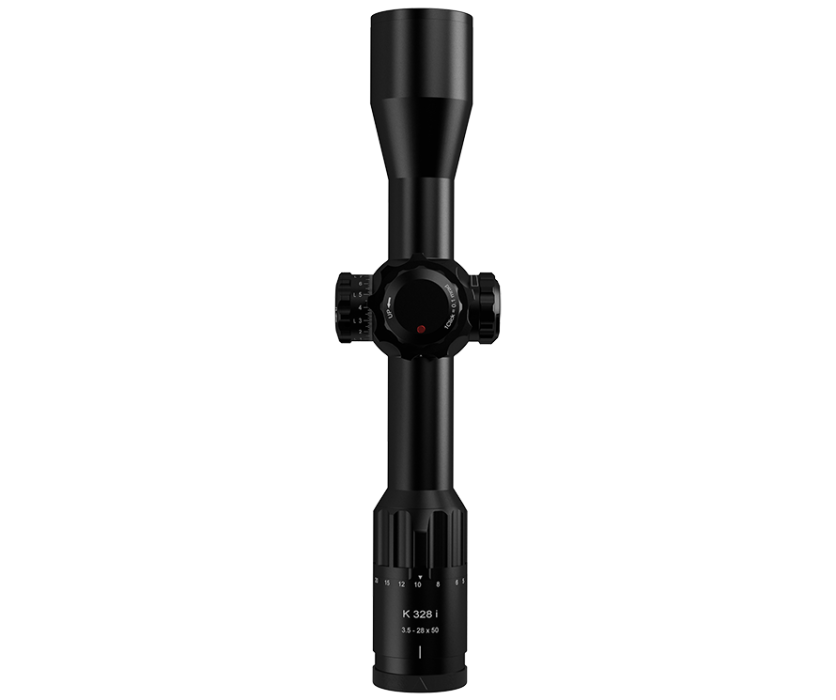

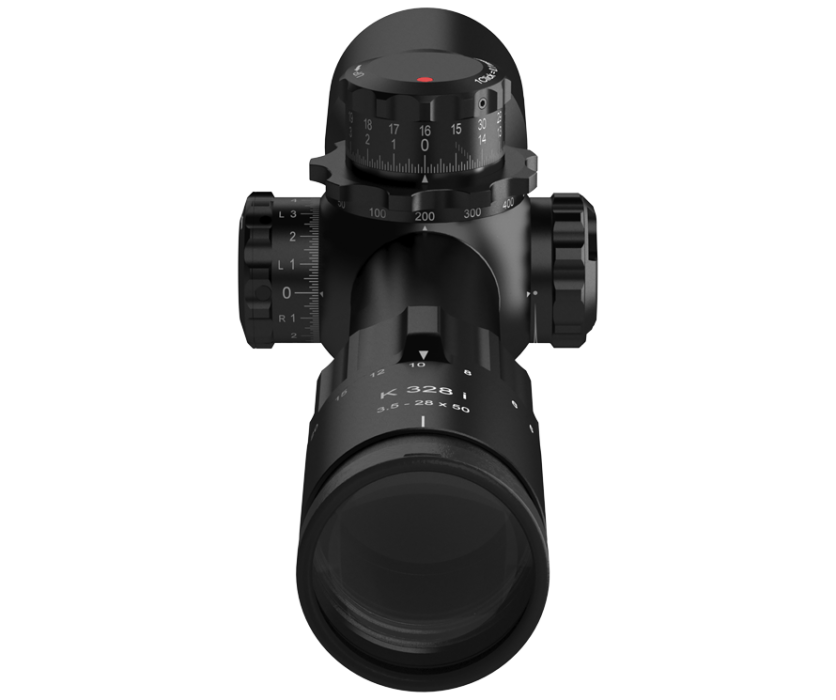

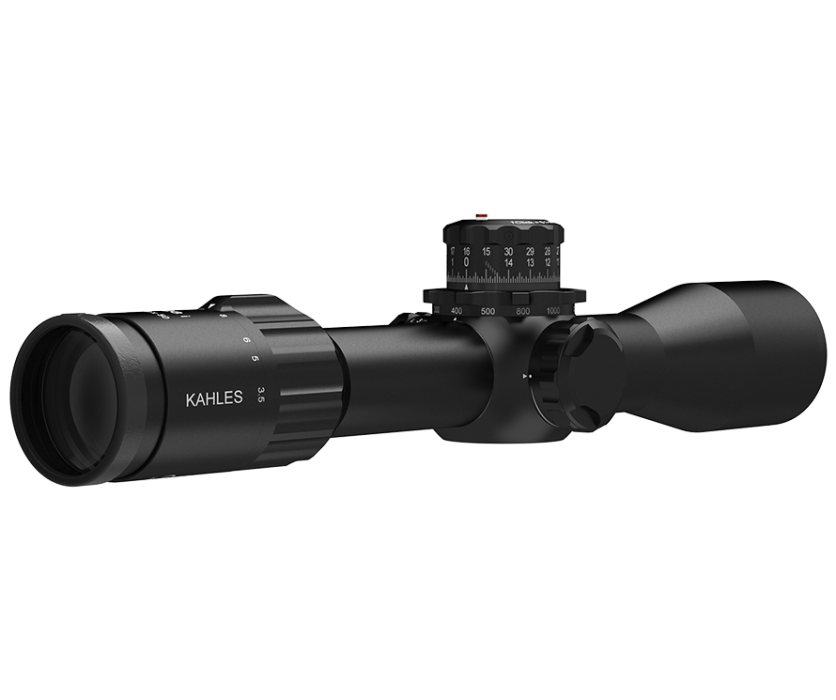

KAHLES | K328i - SKMR4+ | REFINED
The groundbreaking K328i sets new performance standards with a pioneering new-generation optical design. It offers a 40 % wider field of view*, an exceptionally comfortable eyebox and 8x zoom with perfect optical performance across the entire adjustment range.
Absolute precision, repeat accuracy and unique handling for maximum performance.
Absolute precision, repeat accuracy and unique handling for maximum performance.
*) Based on comparison with the K525i at 25x magnification.
▪ Revolutionary optical design with a 40 % wider field of view* and an exceptional eyebox
▪ 8x zoom with perfect optical performance across the entire adjustment range

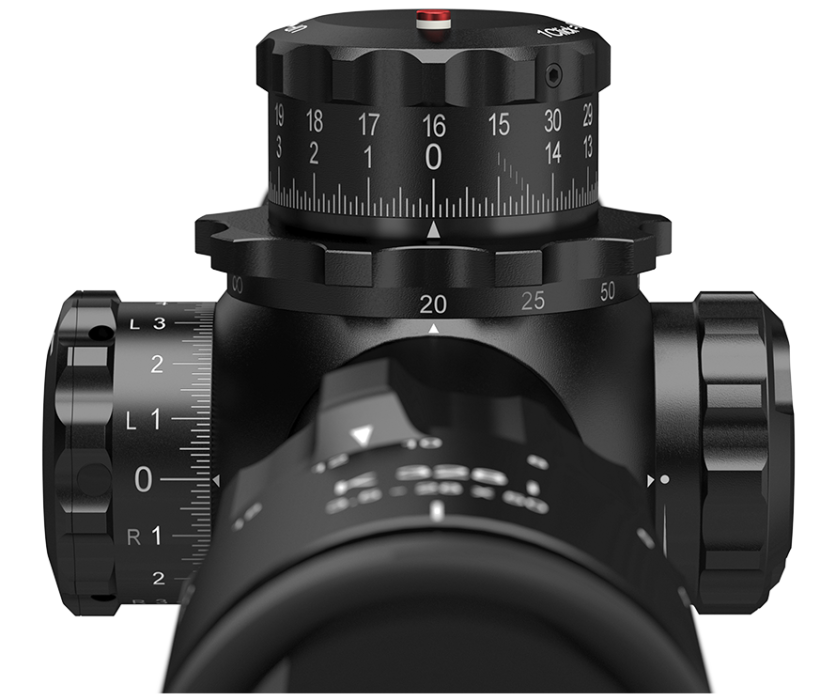

▪ Windage adjustment on the left or right with TWIST GUARD rotation protection
▪ Patented parallax adjustment integrated in the elevation turret (20 m to ∞)
▪ Absolutely reliable repeat accuracy and clearly defined clicks
▪ Precise illuminated reticles in 1st focal plane
▪ 8x zoom with perfect optical performance across the entire adjustment range
▪ Windage adjustment on the left or right with TWIST GUARD rotation protection
▪ Patented parallax adjustment integrated in the elevation turret (20 m to ∞)
▪ Absolutely reliable repeat accuracy and clearly defined clicks
▪ Precise illuminated reticles in 1st focal plane
| Magnification: | 3,5 - 28 |
| Objective lens diameter: | 50 mm |
| Exit pupil: | 1,8 - 7,4 mm |
| Eye relief: | 92 mm |
| Field of view: | 14,3 - 1,8 m/100 m |
| Diopter compensation: | +2 / -3 dpt |
| Twilight factor (DIN 58388): | 13,2 - 37,4 |
| Impact correction per click: | .1 MRAD |
| Adjustment range (E/W): | 3,4 / 1,3 m/100 m |
| Parallax adjustment: | 20 m till ∞ |

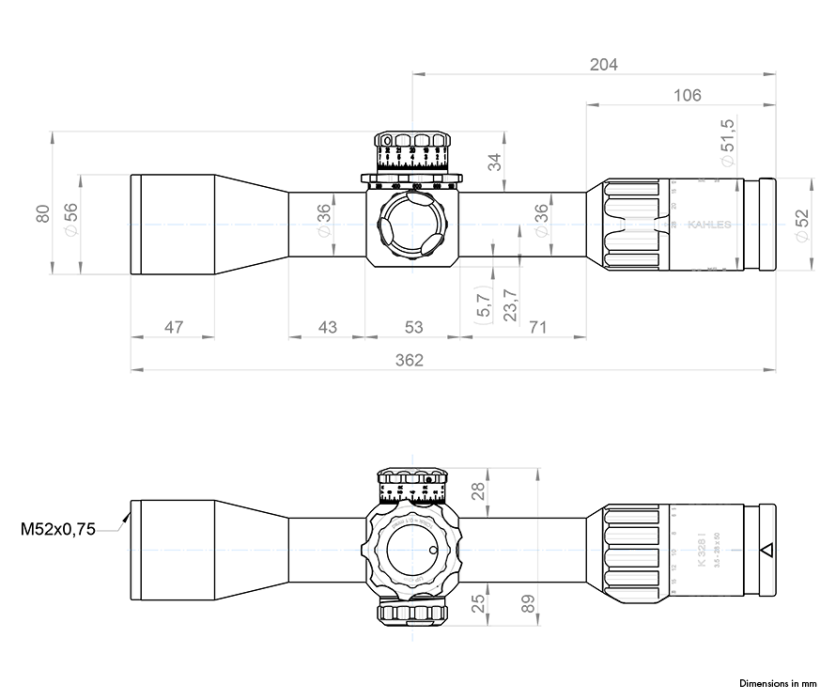

| Tube diameter: | 36 mm |
| Length: | 360 mm |
| Weight: | 1040 g |
| Focal plane: | 1. |
| Illuminated: | Yes |
| Warranty: | 10 (2 electronics) |
